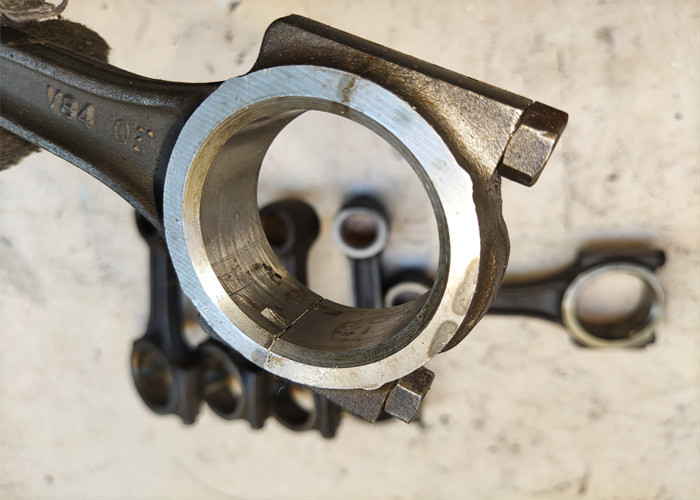

3TN84 3TNE84 4TNE86 4TNE88 4TNV88 Used Connecting Rod For Excavator
PC30 PC45 PC55
specification
| Model : 3TN84 3TNE84 4TNE86 4TNE88 4TNV88 | Number of cylinders: 3 cylinders / 4 cylinders |
| Connecting Rod code: V84 TH | Rod bearing: 51 |
| Engine model: Direct injection | Condition: Used |
| Weight: 0.6KG | Connecting rod stroke: 99 |
Description
Connecting rod Definition:
The connecting rod is defined as it is a mechanical component that
helps to connect the piston and crankshaft of the engine. In other
words, you can say it acts as an intermediate member between the
piston and the cylinder.
Connecting rod Parts or Construction:
The following Construction or Parts of Connecting Rod is:
Small End
Bigger End
Bearing insert
Bushing
Bolt and nut
I-section beam
Shank
Shank:
Apart from this, both the bolt and nut acts to connect the
connecting rod and cap. And we use a section beam which we call a
shank. The cross-section of the rod can be rectangular, tubular,
and be a circular section.
The length of the rod depends on the ratio of (l/r)
Where, l = length of the shank and r = radius of the shank.
If the length is low then the l/r ratio will also be low, Due to
this, the rod will increase in angularity due to which the side
thrust on the piston will increase which causes increasing linear
wear.
In the same way, if the length is more then the ratio of l / k will
be more. Due to this, the angularity of the rod will decrease, so
due to this, the side thrust on the piston will also decrease which
causes less wear is obtained in the cylinder.
Note: The higher the length, the more the engine size will also
increase, so the ratio of l/r is kept between 4 and 5.
What should I do if I have a rod bearing problem?
Typically, repairing connecting rod bearings will include flushing
out the engine and cooler lines, replacing the gaskets, seals, and
cylinder head bolts. Read on to learn more about what rod bearings
are, what causes rod bearing problems, how to fix these problems,
and the cost of repairing or replacing them.
