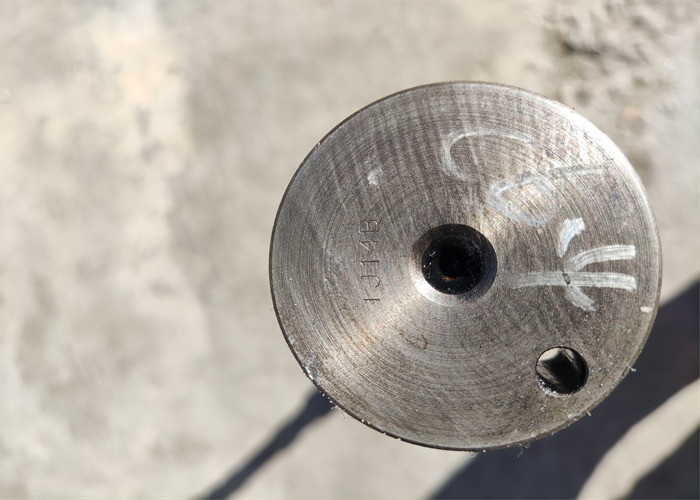

C6 . 4 Diesel Used Camshaft For Excavator E320D 34305 - 00602
Specification
| Engine Type: Diesel | Camshaft code: 34305 - 00602 |
| Application: Excavator | No. of cylinders: 6 |
| Geer quantity: 62 | Size: Standard |
| Type: Electric injection | Category: Spare parts |
Desctiption
Camshaft
A rotating cam
A camshaft is a rod which rotates and slides against a piece of
machinery in order to turn rotational motion into linear motion.
This change of motion is accomplished by the camshaft moving
further and closer from the axis of rotation as the camshaft is
pushed by the machinery. These moving pieces of the shaft are the
cams. The linear distance moved is called the 'throw' .
A camshaft on an internal combustion heat engine is a device that
controls both the input of fuel and the expulsion of exhaust fumes.
It consists of several radial cams, each displacing intake or
exhaust valves. This camshaft is connected to the crankshaft via
belt, chain or gears. This ensures consistent timing of the valves
in relation to the motion of the pistons.
The function of a camshaft is dependent on how a valve works and
the function of the cam itself. A valve on a cylinder head consists
of two basic parts, a stem and a head. The head plugs the nozzle
that allows fuel intake or exhaust flow and requires linear motion.
A cam, in its simplest definition, is a mechanical link that
converts rotational motion into linear motion, or vice versa. The
cams on a camshaft achieve this displacement by the rotation of a
radial pattern, and a follower which moves perpendicular to the
rotational axis.
The cam pattern on a camshaft is non-circular with a single lobe.
The follower matches the displacement of the cam as it rotates.
This displacement is then translated to the stem of the valve,
allowing head to rise as the lobes of the cam pass through the
follower.
Since an automotive engine has several pistons like the piston. A
single cam is insufficient for all of these pistons. An entire rod
covered with cams must be used. Note that the precise placement of
the cams along the shaft allow for precise timing of the relative
valves opening and closing. This precise timing is needed since a
car engine is firing at thousands of RPM.Insuring the timing is
proper in a car engine is one of the simpler ways to save money and
energy.
